M02-Unit 3 Create and configure a virtual network gateway

Scenario

You will configure a VPN gateway to securely connect CoreServicesVnet (East US) and ManufacturingVnet (North Europe) using VNet-to-VNet VPN.

• Task 1: Create CoreServicesVnet and ManufacturingVnet

• Task 2: Create CoreServicesVM

• Task 3: Create ManufacturingVM

• Task 4: Connect to the VMs using RDP

• Task 5: Test the connection between the VMs

• Task 6: Create CoreServicesVnet Gateway

• Task 7: Create ManufacturingVnet Gateway

• Task 8: Connect CoreServicesVnet to ManufacturingVnet

• Task 9: Connect ManufacturingVnet to CoreServicesVnet

• Task 10: Verify that the connections connect

• Task 11: Test the connection between the VMs

For more info click on the image below:

Task 1: Create CoreServicesVnet and ManufacturingVnet

1. Open Cloud Shell in the Azure portal and select PowerShell.

2. Upload: azuredeploy.json and azuredeploy.parameters.json

3. Run:

$RGName = "ContosoResourceGroup"
New-AzResourceGroup -Name $RGName -Location "eastus"
New-AzResourceGroupDeployment -ResourceGroupName $RGName -TemplateFile azuredeploy.json -TemplateParameterFile azuredeploy.parameters.json

---

Task 2 & 3: Create CoreServicesVM and ManufacturingVM

1. Upload:CoreServicesVMazuredeploy.json and ManufacturingVMazuredeploy.json

2. Run (for each):

New-AzResourceGroupDeployment -ResourceGroupName $RGName -TemplateFile <template>.json -TemplateParameterFile <parameters>.json

e.g. for manufacturingvm:

$RGName = "ContosoResourceGroup"
New-AzResourceGroupDeployment -ResourceGroupName $RGName -TemplateFile ManufacturingVMazuredeploy.json -TemplateParameterFile ManufacturingVMazuredeploy.parameters.json

Task 4: Connect to VMs Using RDP

1. In Azure Portal, go to Virtual Machines.

2. Select each VM, click Connect > RDP, download and open the file.

3. Log in with:

   • Username: TestUser

   • Password: (used during deployment)

4. Accept privacy settings and select Yes on network prompt.

5. On CoreServicesVM, run:

    ipconfig


   • Note the IPv4 address.

Task 5: Test Initial Connection (Should Fail)

1. On ManufacturingVM, run:

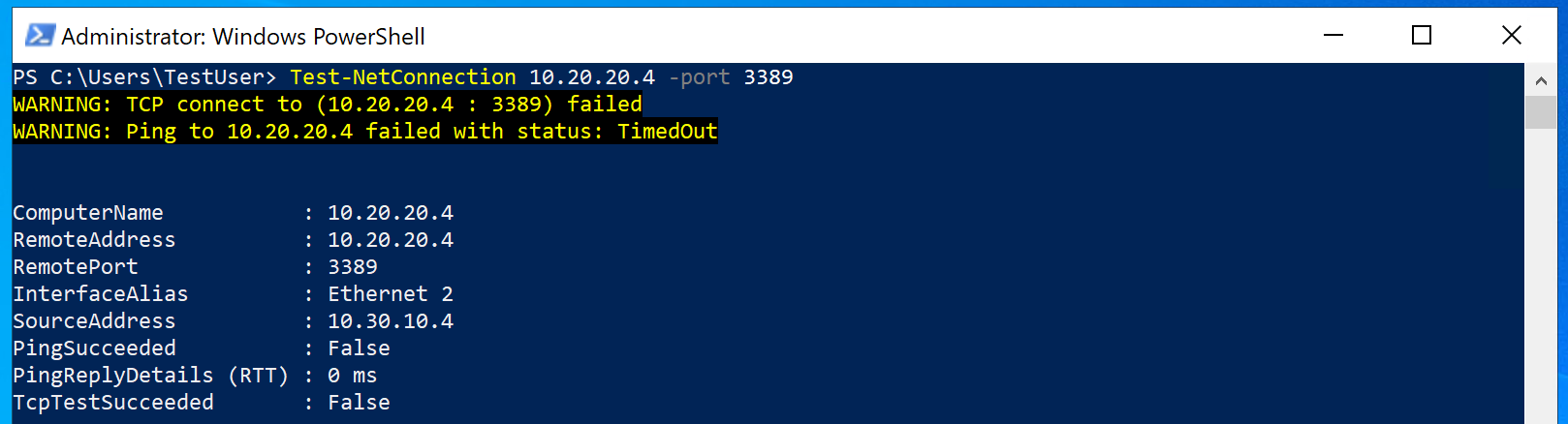

    Test-NetConnection <CoreServicesVM_IP> -Port 3389


   • Connection should fail.

Task 6: Create CoreServicesVnet Gateway

1. Go to Virtual Network Gateways > + Create.

2. Use the following settings:

   • Name: CoreServicesVnetGateway

   • Region: East US

   • Gateway type: VPN

   • SKU: VpnGw1

   • Generation: 1

   • Virtual Network: CoreServicesVnet

   • Subnet: GatewaySubnet (10.20.0.0/27)

   • Public IP: Create new → Name: CoreServicesVnetGateway-ip (disable active-active mode)

---

Task 7: Create ManufacturingVnet Gateway

1. In ManufacturingVnet, go to Subnets > + Subnet.

   • Purpose: GatewaySubnet

   • Size: /27

2. Then create the gateway:

   • Name: ManufacturingVnetGateway

   • Region: North Europe (to be able to select manufacturing vnet)

   • Same settings as above

   • Public IP name: ManufacturingVnetGateway-ip (disable active-active)

Task 8: Connect CoreServicesVnet to ManufacturingVnet

1. Go to CoreServicesVnetGateway > Connections > + Add.

2. Use these settings:

   • Name: CoreServicesGW-to-ManufacturingGW

   • Connection type: VNet-to-VNet

   • First vnet Gateway: CoreServicesVnetGateway

   • Second Vnet Gateway: ManufacturingVnetGateway

   • Shared key: abc123

   • Protocol: IKEv2

   • Region: East US

Task 9: Connect ManufacturingVnet to CoreServicesVnet

1. Go to ManufacturingVnetGateway > Connections > + Add.

2. Use:

   • Name: ManufacturingGW-to-CoreServicesGW

   • Connection type: VNet-to-VNet

   • First Vnet Gateway: ManufacturingVnetGateway

   • Second Gateway: CoreServicesVnetGateway

   • Shared key: abc123

   • Region: North Europe

Task 10: Verify VPN Connection

1. Go to Connections in Azure portal.

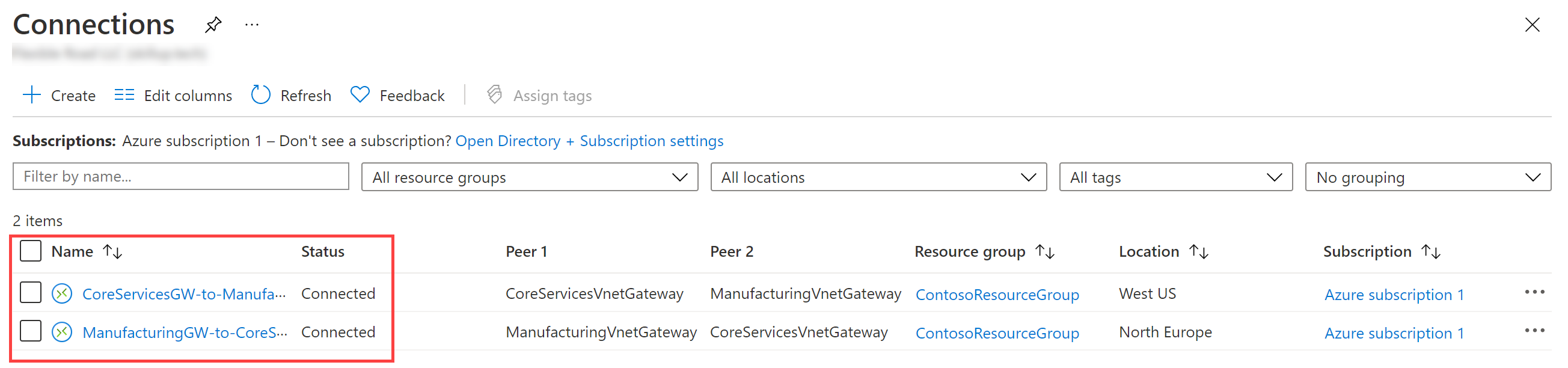

2. Refresh until both connections show Connected.

Task 11: Test Final Connection

1. On ManufacturingVM, run:

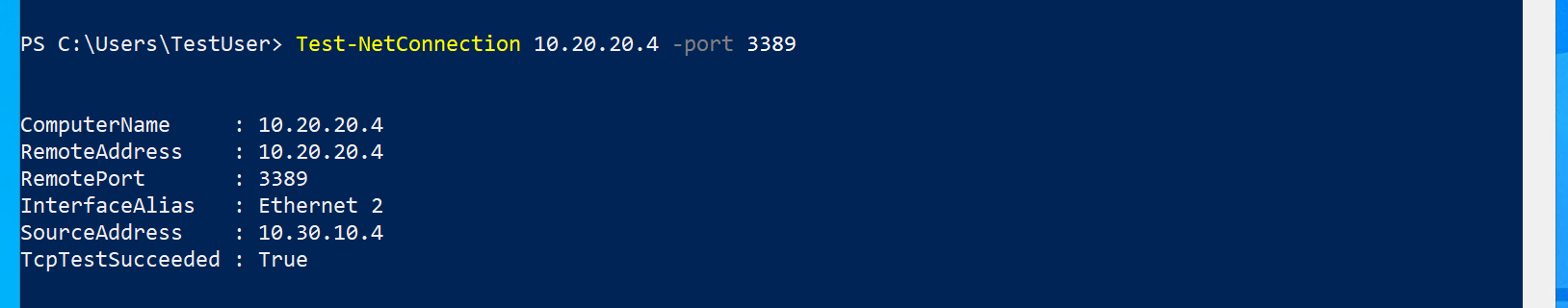

    Test-NetConnection <CoreServicesVM_IP> -Port 3389


   • Connection should succeed.

Clean Up Resources

To delete the resources, run:

Remove-AzResourceGroup -Name 'ContosoResourceGroup' -Force -AsJob

Extend Your Learning

Try these prompts in Microsoft Copilot:

1. What are the types of Azure VPN gateways? Azure supports three main types of VPN gateway configurations:

You can mix S2S, P2S, and VNet-to-VNet on the same gateway (with compatible SKUs).

2. How do VPN gateway SKUs differ? Azure VPN Gateway SKUs differ by performance, features, and pricing. Key differences include:

Tip: Choose based on bandwidth needs, tunnel count, and features like BGP or zone redundancy.

3. What are the costs for Azure VPN gateways?Azure VPN Gateway pricing depends on:

   • SKU selected (Basic, VpnGw1, etc.)

   • Data transfer (ingress is free; egress has cost)

   • Time-based billing (hourly rate)

   • Optional features (e.g., zone redundancy)

Example (as of 2024 – subject to change):

Key Takeaways

• Azure VPN Gateway provides secure cross-region or hybrid connectivity using IPsec/IKE.

• VNet-to-VNet connections require gateways in each VNet and shared keys for IPsec tunnels.

• Bidirectional configuration is necessary.

• Different SKUs provide different performance levels and costs.

---

M02 - Unit 7: Create a Virtual WAN Using Azure Portal

Scenario

In this exercise, you’ll create a Virtual WAN for Contoso, including a hub and a VNet connection. click on the image below for more inforamtion:

Tasks

• Task 1: Create a Virtual WAN

• Task 2: Create a hub by using Azure Portal

• Task 3: Connect a VNet to the Virtual Hub

Task 1: Create a Virtual WAN

1. Go to the Azure Portal.

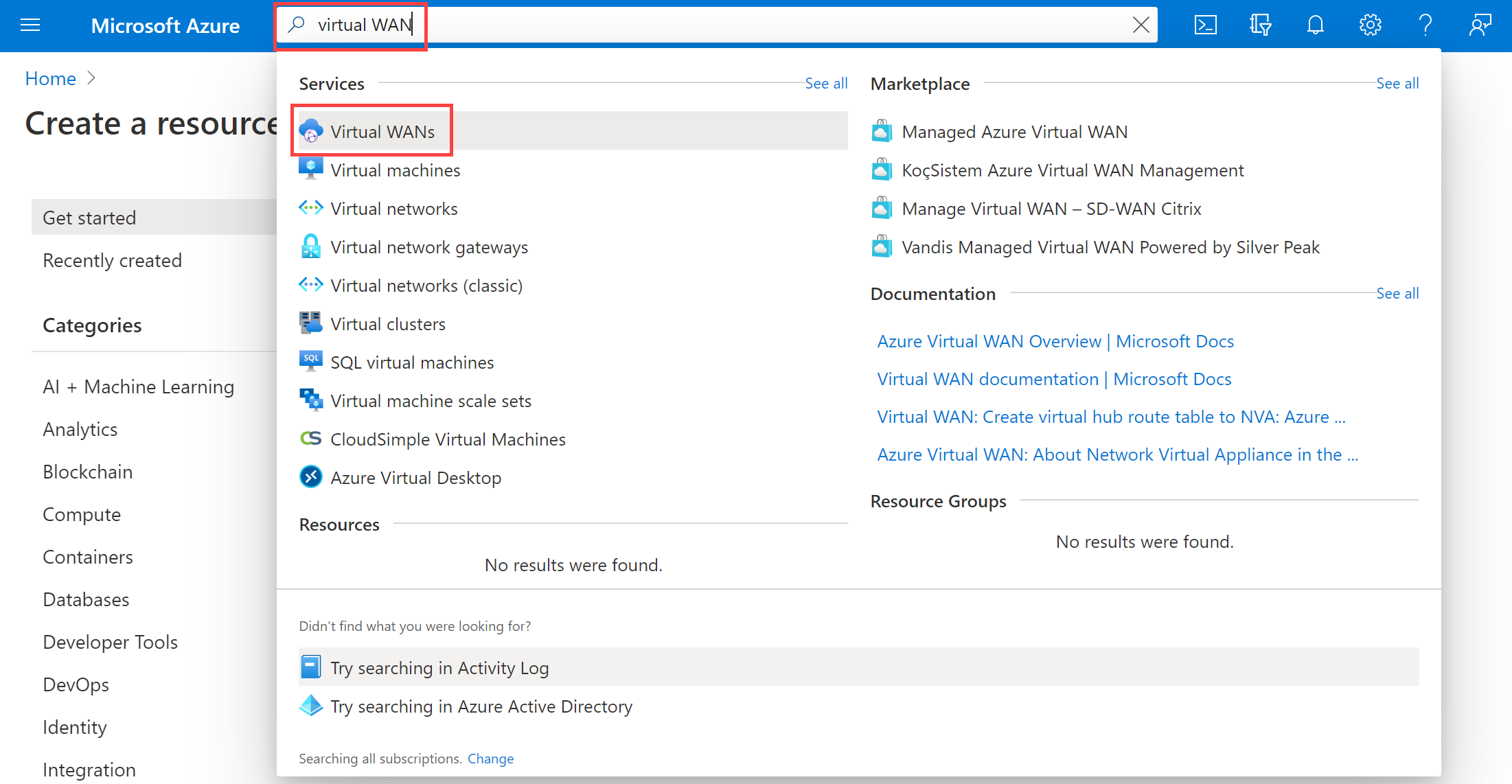

2. Search for Virtual WANs and select + Create.

3. On the Basics tab, fill in:

   • Subscription: (Use existing)

   • Resource Group: ContosoResourceGroup

   • Location: Any region (WAN is global, but region needed for resource placement)

   • Name: ContosoVirtualWAN

   • Type: Standard

4. Select Review + Create, then Create.

Task 2: Create a Virtual Hub

1. Open the ContosoVirtualWAN you created.

2. Under Connectivity, select Hubs > + New Hub.

3. On the Basics tab:

   • Region: West US

   • Name: ContosoVirtualWANHub-WestUS

   • Hub private address space: 10.60.0.0/24

   • Capacity: 2 Routing infrastructure units

   • Leave routing preference as default.

4. Go to the Site-to-site tab:

   • Create Site-to-site VPN Gateway: Yes

   • Gateway scale units: 2

   • Leave AS number and routing preference as default.

5. Click Review + Create, then Create.

Note: VPN gateway creation can take up to 30 minutes.

Task 3: Connect a VNet to the Virtual Hub

1. Go to the ContosoVirtualWAN > Virtual network connections > + Add connection.

2. Fill in:

   • Connection name: ContosoVirtualWAN-to-ResearchVNet

   • Hub: ContosoVirtualWANHub-WestUS

   • Subscription: (No change)

   • Resource Group: ContosoResourceGroup

   • Virtual network: ResearchVNet

   • Propagate to none: Yes

   • Associate Route Table: Default

3. Select Create.

Clean Up Resources

In Cloud Shell, run:

Remove-AzResourceGroup -Name 'ContosoResourceGroup' -Force -AsJob

Extend Your Learning with Copilot

Try these questions at copilot.microsoft.com:

1. What type of network architecture does Azure VWAN use?Azure Virtual WAN uses a hub-and-spoke architecture.

   • The hub is a Microsoft-managed virtual network that acts as a central point for connectivity.

   • Spokes include VNets, branch offices (via site-to-site VPN), remote users (via point-to-site VPN), and ExpressRoute circuits.

   • Traffic between spokes flows through the hub using Microsoft’s global backbone, enabling optimized, scalable, and secure routing.

2. What are the differences between Azure VWAN Basic and Standard?

• Use Basic for simple S2S VPN-only deployments.

• Use Standard for full enterprise, hybrid, or global network integration.

3. Can I create an Azure VWAN using scripting tools?Yes. Azure VWAN supports deployment via:

• Azure CLI

az network vwan create --name ContosoVirtualWAN --resource-group ContosoResourceGroup --location eastus --type Standard

• Azure PowerShell

New-AzVirtualWan -ResourceGroupName "ContosoResourceGroup" -Name "ContosoVirtualWAN" -Location "East US" ` -Type "Standard"

Key Takeaways

• Azure Virtual WAN simplifies global connectivity using a hub-and-spoke architecture.

• Use cases include: Site-to-Site, Point-to-Site, and ExpressRoute.

• Basic VWAN supports only Site-to-Site VPN.

• Standard VWAN supports all scenarios, including enhanced routing, hubs, and multiple VPN types.
