Az-204

Lab 01 - Build a web application on Azure platform as a service offering

For complete instruction please visit microsoft learn github here we will do the following:

Creating a web application on Azure by using the PaaS model.
Uploading existing web app files by using the Apache Kudu zip deployment option.
Viewing and testing the newly deployed web application.

Lab Scenario

https://www.youtube.com/watch?v=EiSEcU9qjfo&ab_channel=MicrosoftTrainerCommunityChannel

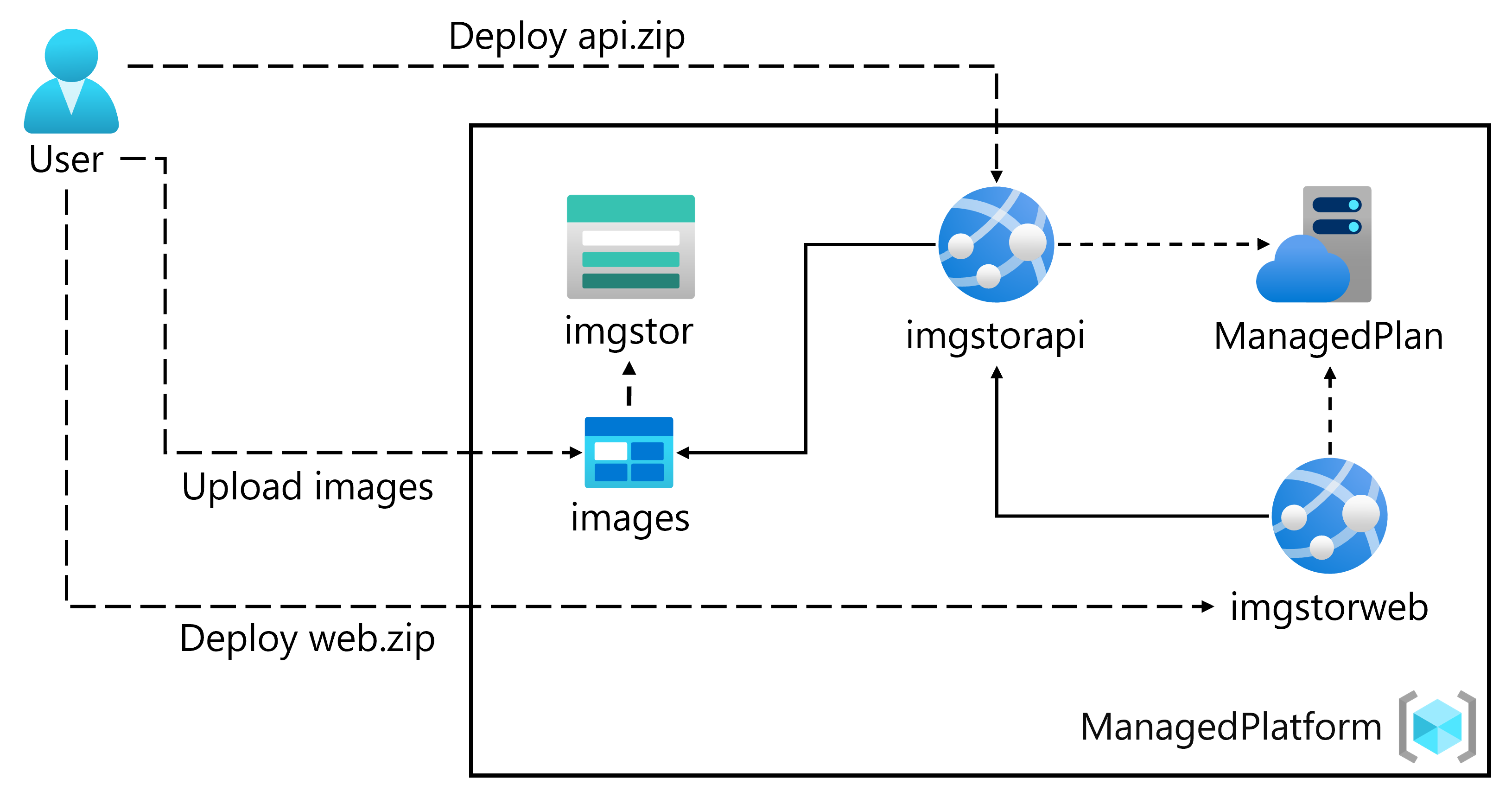

Architecture diagram depicting a user building a web application on Azure platform as a service offering.

Create a storage account of imgstor50403225 and go to the resource > Access keys > copy a Connection string to Notepad then
Go to the Storage Account > Containers > + Container > name it imagesupload blob
Create a web App (API) of imgapi50403225 with runtime of .net 8 LTS
Configure the web app to storage account using the connection string from notepad
Deploy the API with openning vs code and the folder downloaded from this location: https://github.com/MicrosoftLearning/AZ-204-DevelopingSolutionsforMicrosoftAzure/tree/master/Allfiles/Labs/01/Starter/API
Enter the following CLI command:

az login
az webapp list --resource-group ManagedPlatform-lod50403225 --query "[?starts_with(name, 'imgapi')].{Name:name}" --output tsv
cd C:\Allfiles\Labs\01\Starter\API
az webapp deployment source config-zip --resource-group ManagedPlatform-lod50403225 --src api.zip --name <your-api-name>

To create Front-End Web App Repeat Web App creation:

Name: imgweb50403225
Use existing plan: ManagedPlan
Same stack/region/OS
Disable Insights, then Review + create > Create.

To configure Front-End Go to app > Configuration > + New application setting:

- Name: ApiUrl
  - Value: Your previously copied API URL (with https://)
  - Click Save.

To deploy Front-End, In VS Code > Open Folder: C:\Allfiles\Labs\01\Starter\Web.
In terminal:

az login
az webapp list --resource-group ManagedPlatform-lod50403225 --query "[?starts_with(name, 'imgweb')].{Name:name}" --output tsv
cd C:\Allfiles\Labs\01\Starter\Web
az webapp deployment source config-zip --resource-group ManagedPlatform-lod50403225 --src web.zip --name <your-web-name>

To test the App, Browse to your front-end app, You should see grilledcheese.jpg in the gallery. Upload banhmi.jpg using the UI. Refresh if needed.
