Managing Subscriptions and RBAC in Azure

This is just a summary. Find the complete lab instructions on GitHub!

Scenario

Simplify Azure resource management by:

Creating a management group for your subscriptions.
Granting Help Desk the ability to submit support requests, limited to:
- Creating and managing virtual machines
- Creating support request tickets (excluding adding Azure providers)

Interactive Simulations

Optional simulations to reinforce your understanding:

Manage access with RBAC: Assign roles and monitor activity logs.
Manage subscriptions and RBAC: Implement a management group and create/assign roles.
Open a support request: Review options, create and monitor requests.

Architecture Diagram

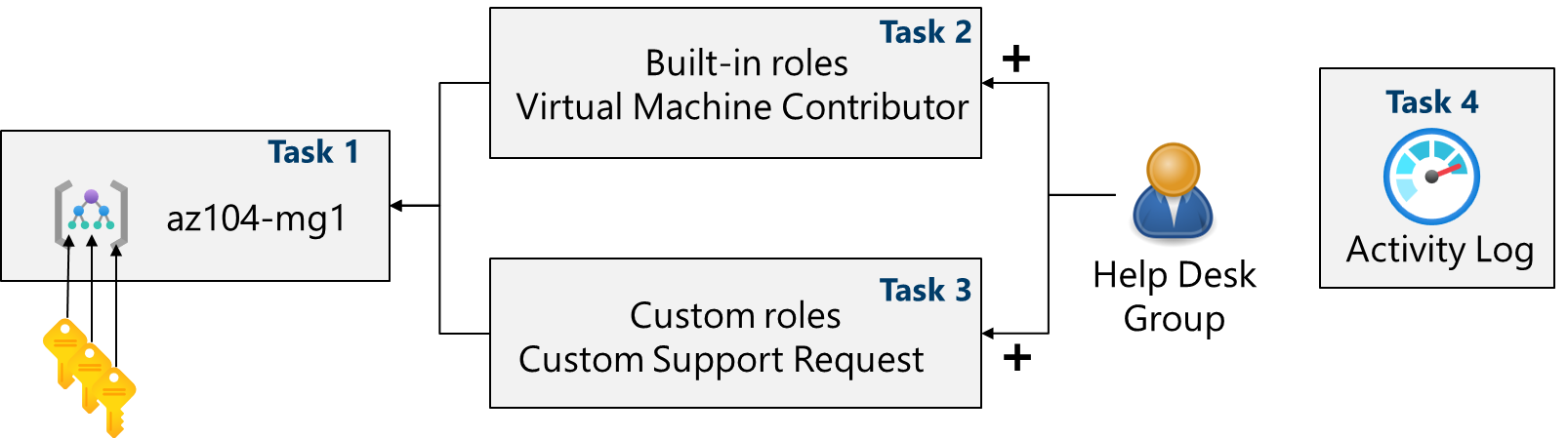

Diagram of lab tasks.

Task 1: Implement Management Groups

Sign in to the Azure portal: https://portal.azure.com
Navigate to: Microsoft Entra ID > Properties > Management groups > + Create
Create a management group:

Management group ID az104-mg148607161 (must be unique)

Management group display name az104-mg148607161 |

Task 2: Assign Built-in Role

Select the az104-mg148607161 management group.
Navigate to: Access control (IAM) > Roles > + Add > Add role assignment
Select "Virtual Machine Contributor" role.
Assign the role to the helpdesk group.

Task 3: Create Custom RBAC Role

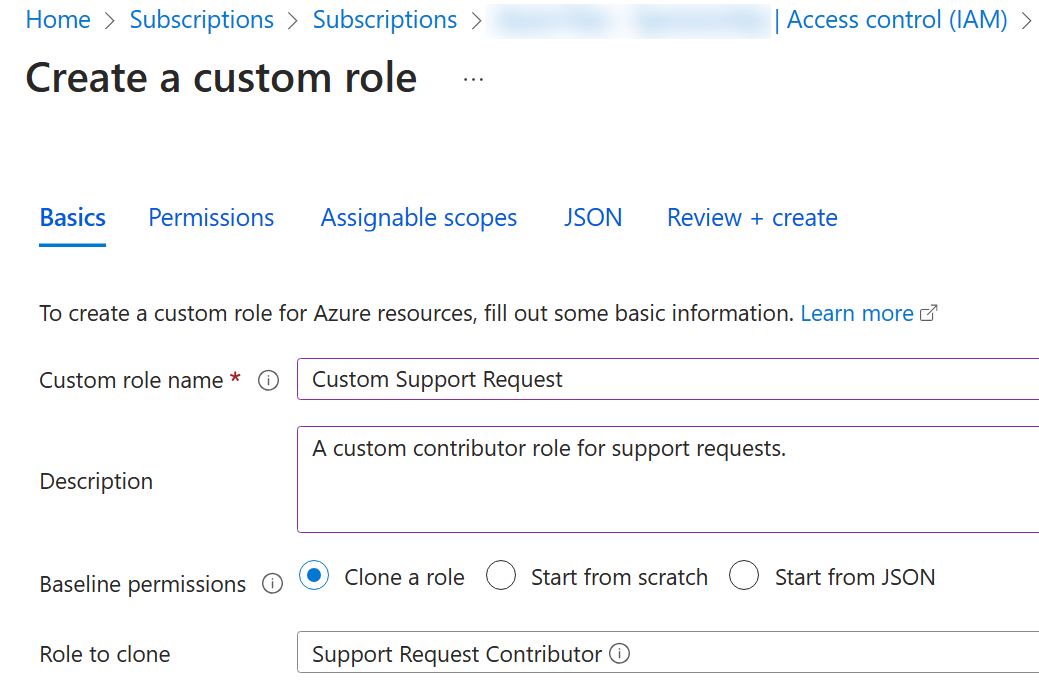

Navigate to: Access control (IAM) > + Add > Add custom role
Configure the custom role:

Custom role name Custom Support Request48607161

Description A custom contributor role for support requests.

Baseline permissions Clone "Support Request Contributor"
Exclude the "Registers Support Resource Provider" permission.
Ensure your management group is listed in "Assignable scopes".
Review the JSON and create the role.

Task 4: Monitor Role Assignments

For the az104-mg148607161 resource, select "Activity log".
Review the role assignment activities.

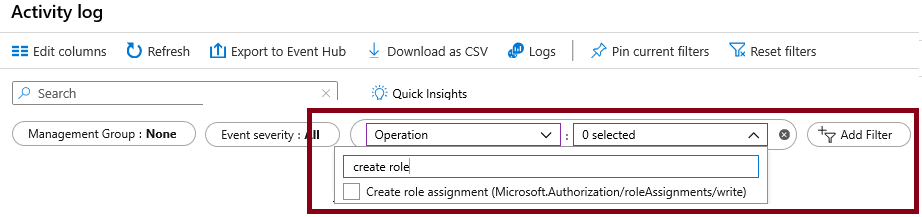

Screenshot of the Activity log page with configured filter.

Cleanup

Delete the lab resources to avoid unnecessary costs.

Azure portal: Delete the resource group.
PowerShell: Remove-AzResourceGroup -Name resourceGroupName
CLI: az group delete --name resourceGroupName

⚖
